1. Reliable & Professional 2. Good Bendability 3. High Conversion Efficiency 4. Durability & Waterproof 5. Versatile

Product size : 1050*540*2.5mm

Optimal power [Pmax] : 200W±0.25W

Working voltage [Vmp] : 18V±0.3V

Working current [lmp] : 11.11At0.15A

Short circuit current [lsc] 12AtO 15A :

Open circuit voltage [Voc] 20V+0 8V :

Temperature coefficient of the voltage :  (O.06510±0.15)%/℃

Temperature coefficient of current : -(160±10)mA/℃

The temperature coefficient of power : -(0.5 0.05)%/℃

Maximum system voltage :  2000V

Ambient temperature : -40/℃-+85/℃(40°Fto185°F)

Air resistance :  50pst (2400pascals)

Snow resistance :  113psi (5400pascals)

Hail impact : 25mm(1inch)at23m/s(52mph)

Net Weight : 2816g

Gross Weight : 4480g

Produt Details Download

200W 12V Mono-crystalline Solar Panel Flexible System kit Photovoltaic Module Cell with Controller PV Connector for Home RV Caravan Boat Battery

[About this item]

Reliable & Professional - The semi flexible solar panel is unlike traditional old one. It is made with new innovative encapsulation material to protect the cells inside the panel and provide a longer life span. It is so strong that people could even walk on it and the fragile solar cells inside still remained intact. This has never been seen before (Note: the solar panel needs to be placed on smooth floor when it is tested)

Good Bendability - The solar panel can be curved to a maximum 30 degree arc, allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers, yacht, motorhome, Roofs, or any other irregular surface. High module conversion efficiency, fast and inexpensive mounting.

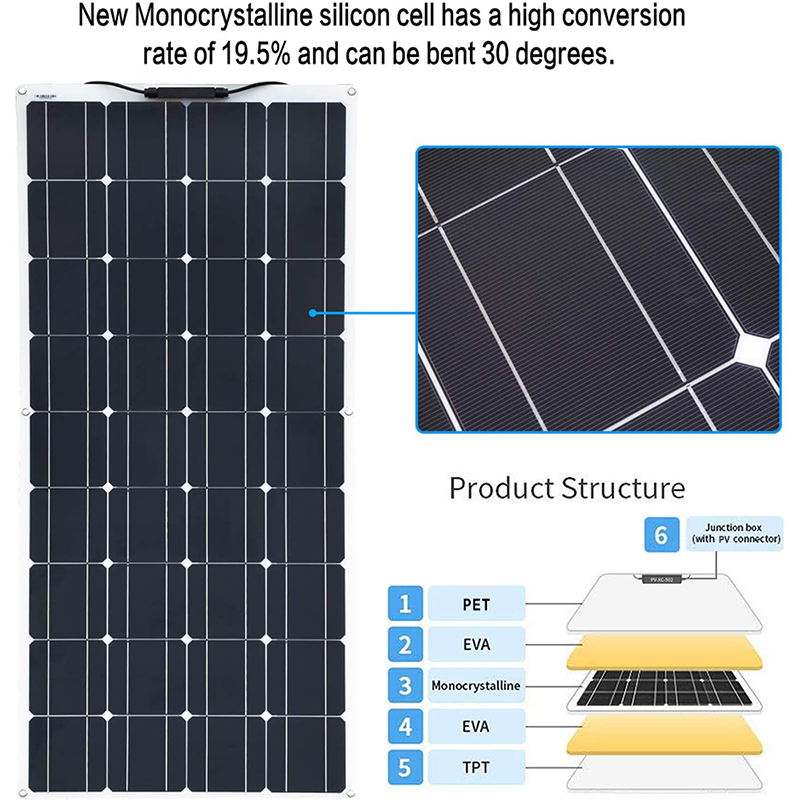

High Conversion Efficiency - High efficient monocrystalline solar cell, adopt unique back contact technology and remove electrodes on the solar cell surface that block the sunshine to increase the solar panel conversion efficiency up to 50% more efficiency than ordinary. The transparent dots on the surface can gather sunlight from different angles, this unique feature can sufficiently utilize sunlight and increase solar conversion rate.

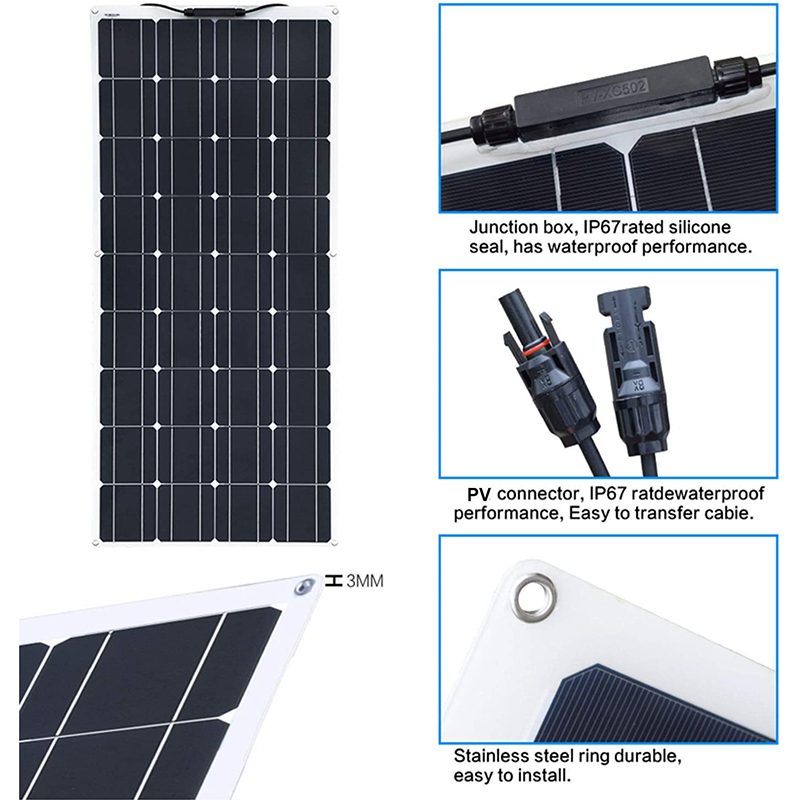

Durability & Waterproof - High temperature resistance, easier to clean. The solar panel made of advanced water resistant material, the junction box is sealed and waterproof, the internal blocking diode which prevents reverse current drain at night. Can be used for many different applications,such as for use in RVs, caravan, boats, tents, trailers, cabin, etc.

Versatile - This solar panel is easy to transport, hang, and remove, 6 stainless eyelets at the edges for easy installation. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer. Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications.
