Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller
Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller

Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller

1. Reliable & Professional 2. Good Bendability 3. High Conversion Efficiency 4. Durability & Waterproof 5. Versatile

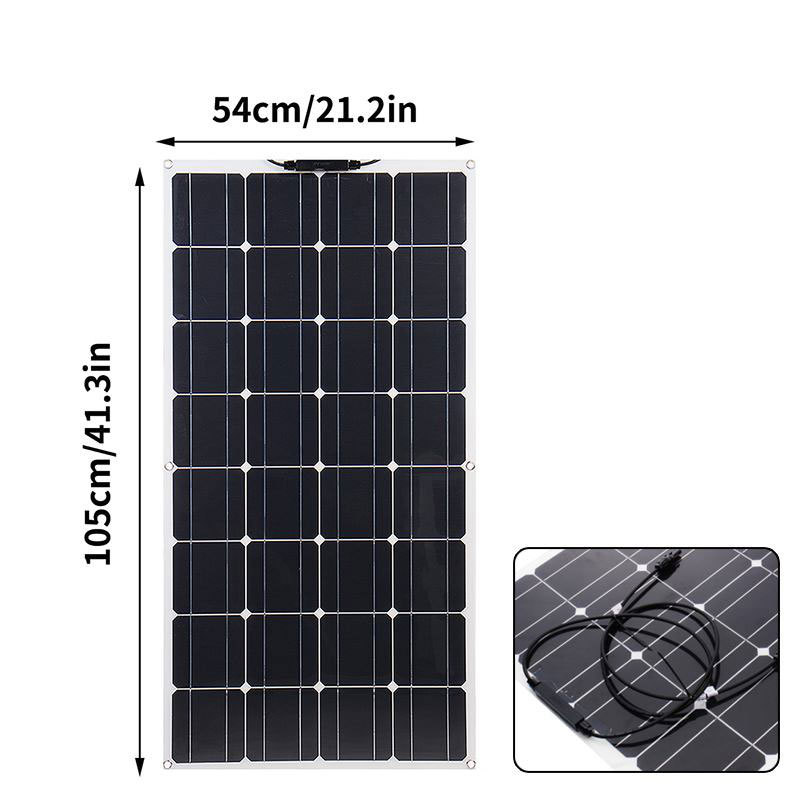

Product size : 1050*540*2.5mm

Optimum power : 125W±0.25W

Operating voltage : 17.5V±0.3V

Operating current : 7.1A±0.15A

Short circuit current : 7.3A±0.15A

Open circuit voltage : 21V±0.8V

Temperature coefficient voltage : (0.065±0.015)%/℃

Temperature coefficient current : -(160±10)mA/℃

Temperature coefficient power : -(0.5±0.05)%/℃

Maximum system voltage : 1000V

Ambient temperature : -40°C - +85°C (-40°F to 185°F)

Wind resistance : 50psf (2400 pascals)

Snow resistance : 113PSF (5400 Pascals)

Hail impact : 25mm (1 inch) at 23 m/s (52mph)

Produt Details Download

Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller

[About this item]

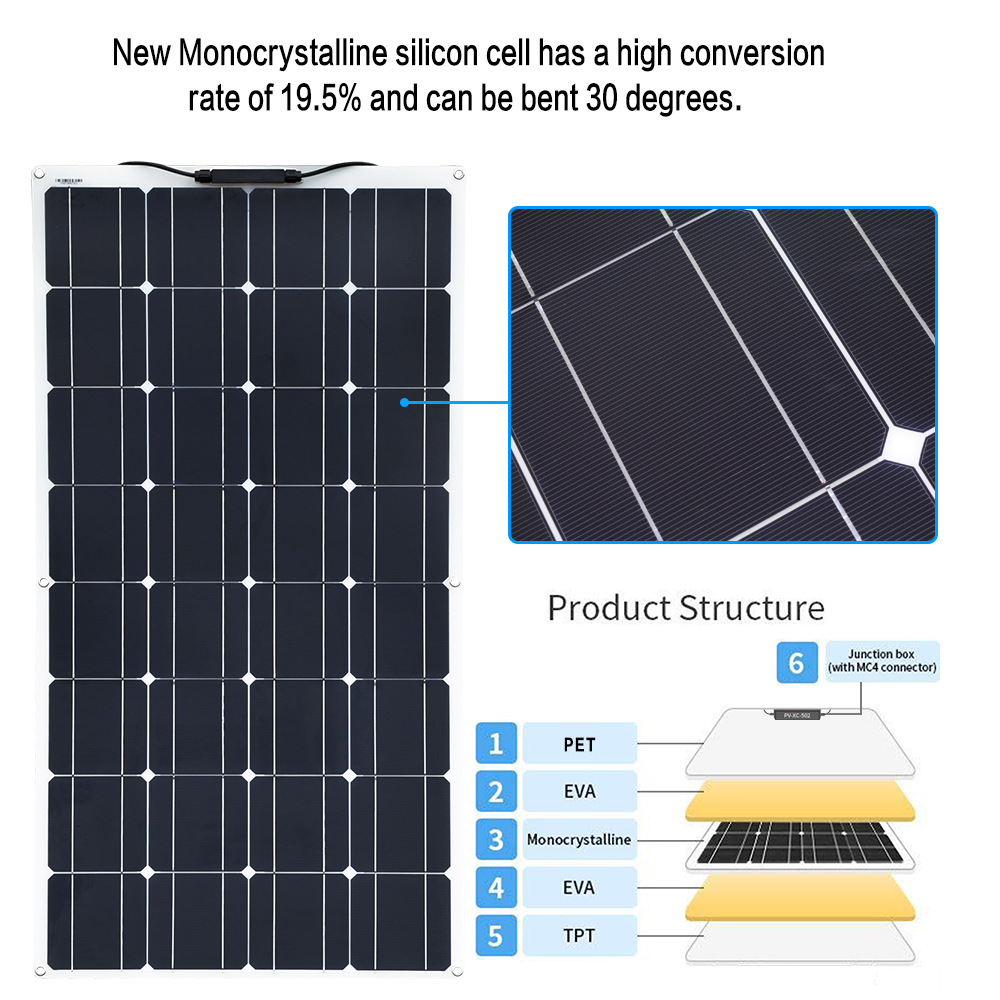

Reliable & Professional - The semi flexible solar panel is unlike traditional old one. It is made with new innovative encapsulation material to protect the cells inside the panel and provide a longer life span. It is so strong that people could even walk on it and the fragile solar cells inside still remained intact. This has never been seen before (Note: the solar panel needs to be placed on smooth floor when it is tested)

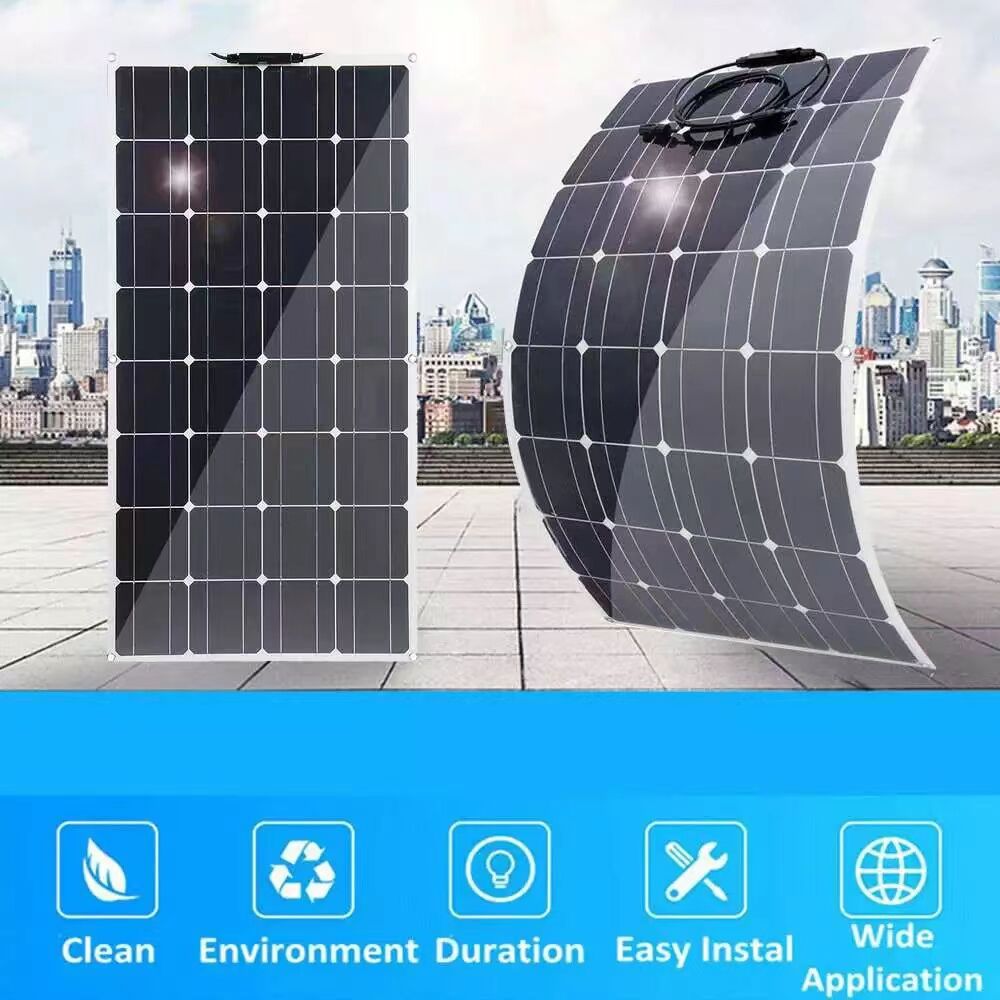

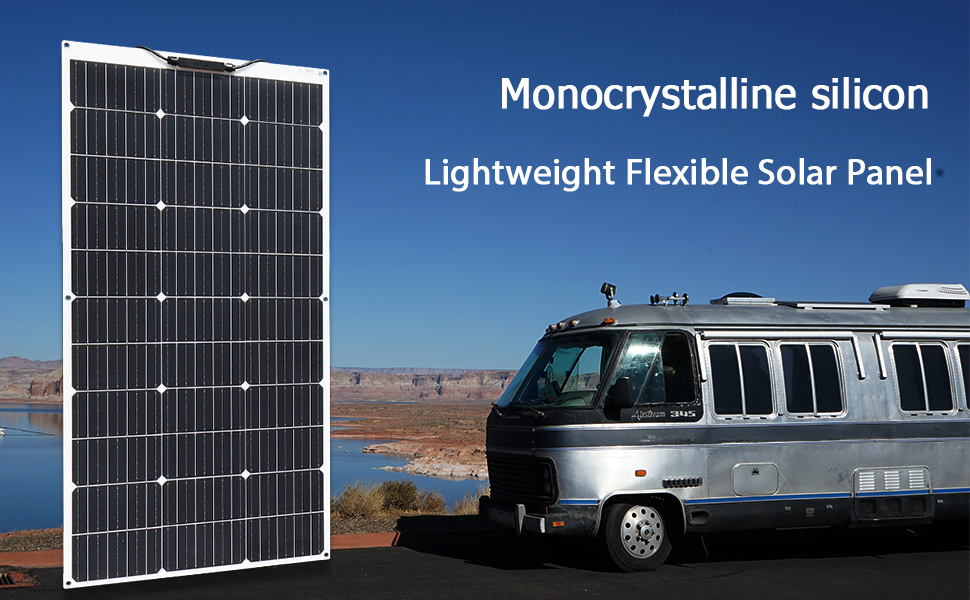

Good Bendability - The solar panel can be curved to a maximum 30 degree arc, allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers, yacht, motorhome, Roofs, or any other irregular surface. High module conversion efficiency, fast and inexpensive mounting.

High Conversion Efficiency - High efficient monocrystalline solar cell, adopt unique back contact technology and remove electrodes on the solar cell surface that block the sunshine to increase the solar panel conversion efficiency up to 50% more efficiency than ordinary. The transparent dots on the surface can gather sunlight from different angles, this unique feature can sufficiently utilize sunlight and increase solar conversion rate.

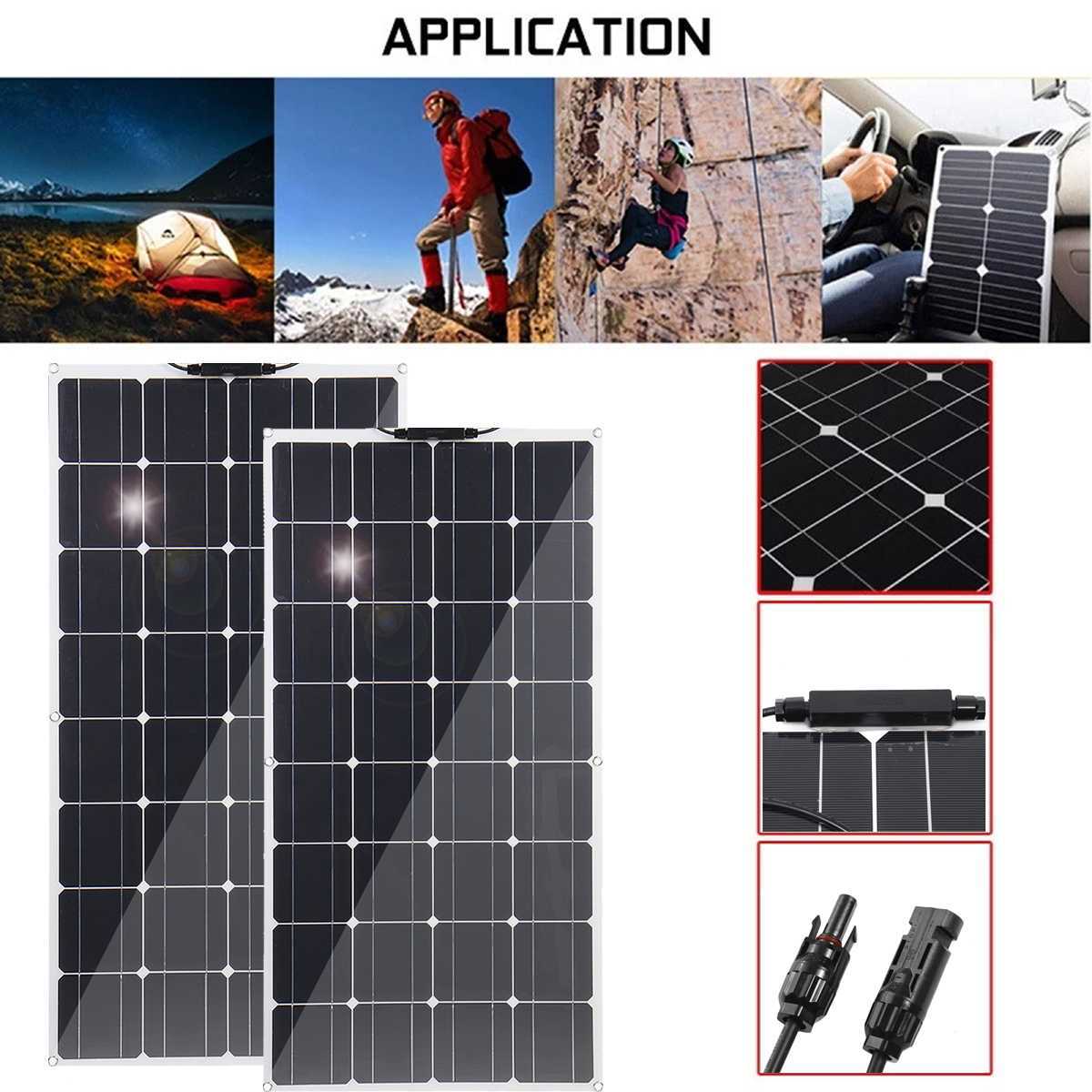

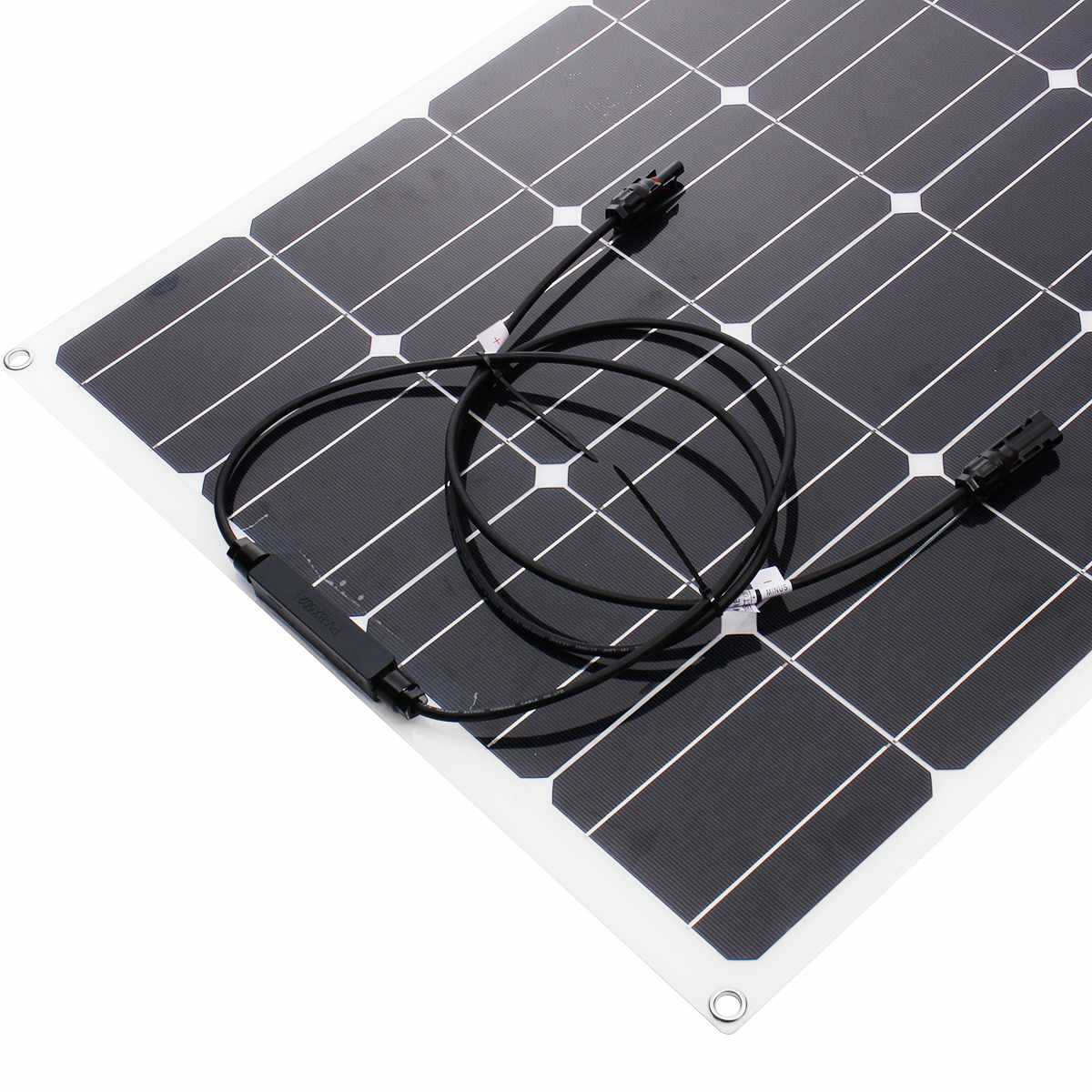

Durability & Waterproof - High temperature resistance, easier to clean. The solar panel made of advanced water resistant material, the junction box is sealed and waterproof, the internal blocking diode which prevents reverse current drain at night. Can be used for many different applications,such as for use in RVs, caravan, boats, tents, trailers, cabin, etc.

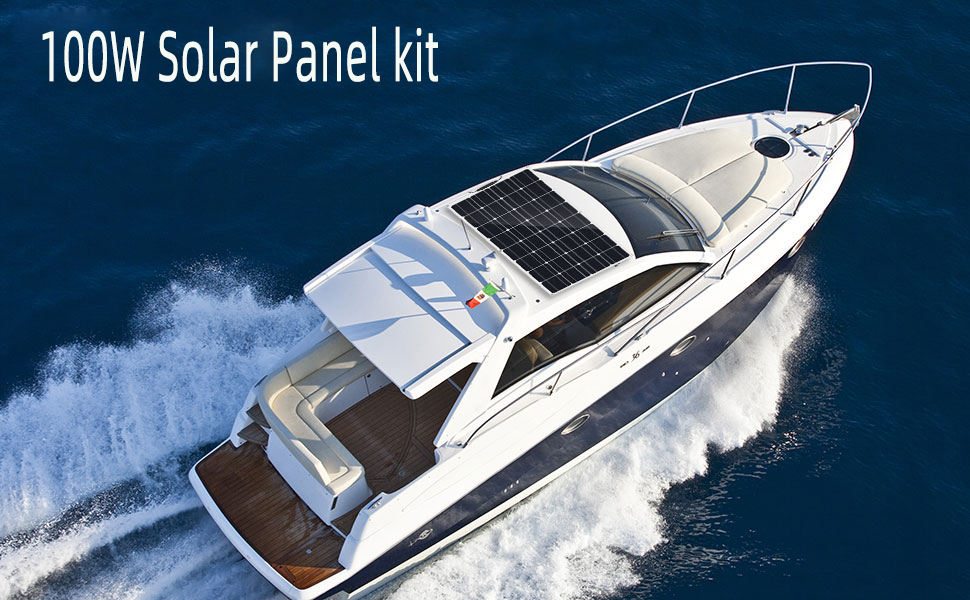

Versatile - This solar panel is easy to transport, hang, and remove, 6 stainless eyelets at the edges for easy installation. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer. Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications.
